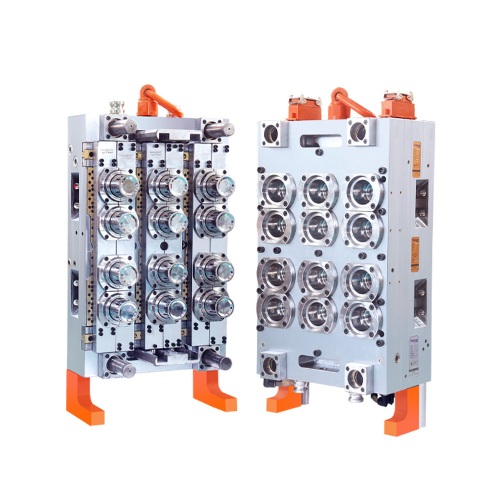

Preform mold

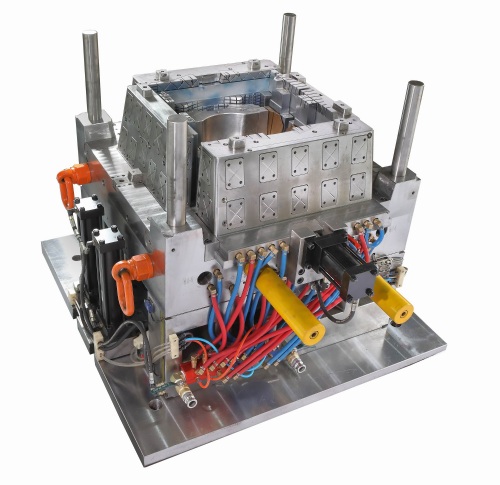

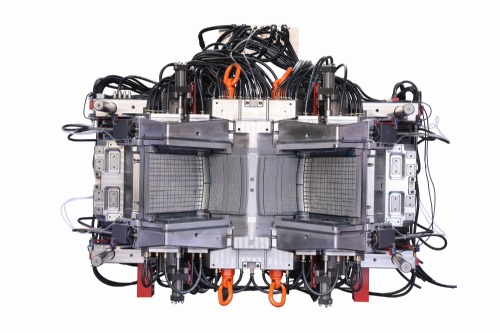

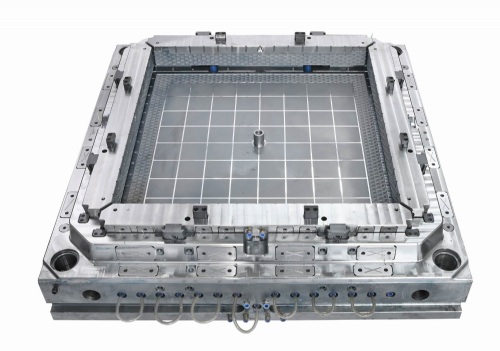

1The overall structure of the mould is compact and precision, all templates deal with the ion nitriding. The appearance can be preserved for a long time , the template material becomes 4Cr13 mold.
2There is complete elimination of templates internal stress. It remains the temperature of 500℃ for 36hours in vacuum state. Precision finishing after cooling out. It won’t cause unstable factors such as deformation and distortion of the use.
3Only one-time setup process of all templates by moldbase to ensure the high accuracy of forming holes, introduction of concentricity column sets and overall moldbase.

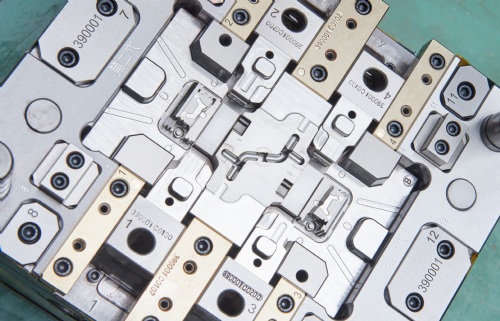

4Die slider adopts die outside mechanical, materials for high-intensity and anti-corrosion steel s136.The structure is reliable. The overall opening and closing modulus of mould(slider, push plates, top out)is coordinate-steps. Sliding contact surfaces of all components are using advanced ion nitriding, local hardness of the surface can reach HRC65-70
