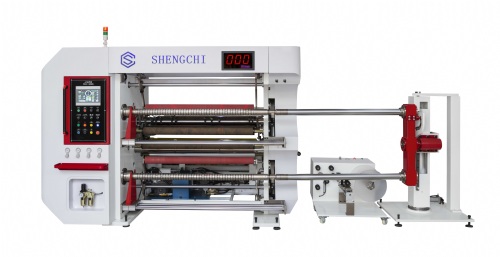

SCP-1300 Slitting machine 500m/min slitting machine, with waste edge trimming winder, auto pusher, rotary sub-frame is optional Technical specification Power: 15KW Material width: 1300 mm Material diameter: 800 mm Winding diameter: 600 mm Paper Core dia: #3#6 Cutting speed: 10-500 m/min Correction accuracy: ≤0.1mm Minimum cutting width: 30mm Weight: 2800KG Main slitting machine size: L 2800mm*W 1950mm*H 1850mm Auxiliary frame size L 1500mm*W 600mm* H 1550mm 1. 3/ 6 inch shaftless uploading. 2. Cylinders control feeding up and down. 3. magnetic powder to control unwind jumbo roll tension. They detect roll diameters automatically, and automatically stops if feeding is cut off or no feeding is detected 4.Feeding plates are equipped with automatic alignment systems, follow with inner printed edge or material outline. 5.electric élimination bars before rewinding 6.It adopts two 3/6 inch slip shafts to rewind Unwinding 5.5KW SERVO motors 1set FUKUTA Tension control Magnetic powder 10KG Rewinding motor 3.7KW SERVO 2 sets FUKUTA Frequency Converter YASKAWA Japan Bearings NSK Japan Pneumatic components AIR TAC Webguide Pausource Taiwan
