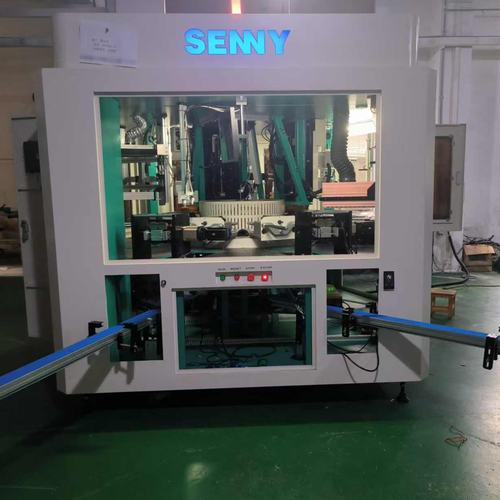

High-Speed CNC Bottle Screen Printer With Optional Configuration For Full Servo Container Printing

Production speed and number of colors are indicators of machine performance.
High-performance machines must also have:
• Ability to load and orient complex-shaped jars/bottles,
• Full CNC control to maximize printing areas on complex-shaped items,
• Quick-change and pre-set functions to shorten changeover times,
• In-line print inspection for each item.

Machine Features ：
Each fixture is driven by its own servomotor, an essential requirement for CNC-control of the printing movements.
Quick change fixtures reduce changeover times.
Each machine features a solidly-built welded frame, ensuring smooth, vibration free operation even at high printing speeds. The surfaces that are crucial for ensuring that screens are parallel with the fixtures are precision machined.

Optional Configuration：
Product lying flat feeding and discharging function.
Plasma surface treatment function.
Hot stamping function.
Bottle bottom visual registration function.
Bottle body visual registration function.
LED-UV curing system.
Finished product quality inspection function

Technical Parameters：
- Work Station: 12
- Printing Speed: Up to 60pcs/min
- Diameter at 360 Degree: 13–100mm
- Bottle Height: 20–320mm
- Printing Length: 300mm
- Printing Height: 200mm
- Printing Accuracy: ±0.1mm

---
