Description

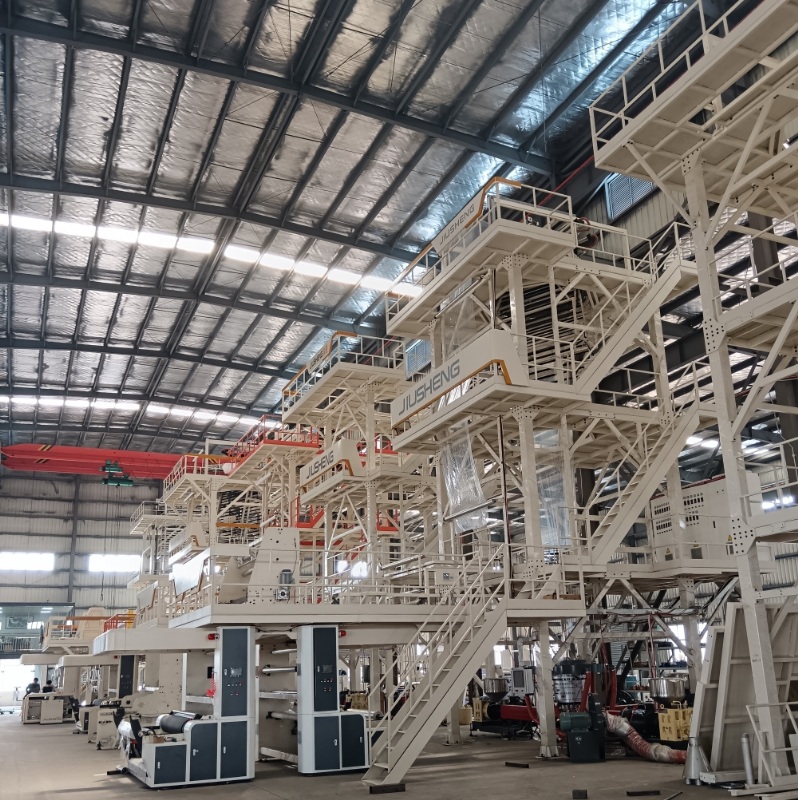

Jiusheng 2000 five-layer co-extrusion film blowing machine, the main advantage is stability and high yield. The main films are used in electronics, packaging, medical, food and beverage, building materials and other industries.
?
Model SJZGM5-75/55/55/55/75-2000
Suitable material PA,EVOH,LDPE,LLDPE,mLLDPE
Film layer 5 layers
Film thickness 0.035-0.3mm
Max film width 1800mm
Max output 300-400Kg/h
Screw diameter φ75/φ55/φ55/φ55/φ75
Screw L/D ratio 30:1
Die head diameter φ400mm lBC φ450mm IBC
Air ring diameter φ2000mm
Main motor power 45Kw*2 37Kw*3
IBC system P+F probe and IBC system
EPC system Center or side ultrasonic type
Screen changer Double station manual screen change + pressure gauge
Winding method Surface + center winding
Tension control system Tension sensor
Overall Dimension
(L*W*H) 14500*7500*13500
?
?
Model SJZGM5-75/55/55/55/75-2000
Suitable material PA,EVOH,LDPE,LLDPE,mLLDPE
Film layer 5 layers
Film thickness 0.035-0.3mm
Max film width 1800mm
Max output 300-400Kg/h
Screw diameter φ75/φ55/φ55/φ55/φ75
Screw L/D ratio 30:1
Die head diameter φ400mm lBC φ450mm IBC
Air ring diameter φ2000mm
Main motor power 45Kw*2 37Kw*3
IBC system P+F probe and IBC system
EPC system Center or side ultrasonic type
Screen changer Double station manual screen change + pressure gauge
Winding method Surface + center winding
Tension control system Tension sensor
Overall Dimension
(L*W*H) 14500*7500*13500
?
