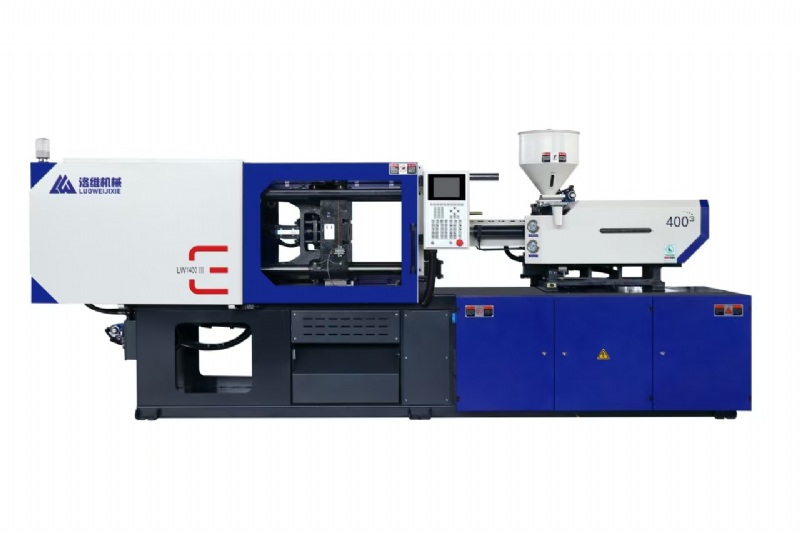

Description
Injection Unit
Screw Diameter: 40 mm
Screw L/D Ratio: 22 L/D
Shot Volume: 238.5 cm3
Actual Injection Volume: 217 g
Injection Pressure: 159 MPa
Clamping Unit
Clamp Tonnage: 1400 kN
Toggle Stroke: 380 mm
Space Between Tie-Bars: 420 × 420 mm
Max Mould Thickness: 450 mm
Min Mould Thickness: 130 mm
Ejector Stroke: 120 mm
Knockout Quantity: 5 pins
Ejector Tonnage: 40 kN
Other Parameters
Max. Pump Pressure: 14 MPa
Machine Weight: 3.2 T
Motor Power: 15kW
Heater Power: 8.7kW
Overall Dimension: 4.2*1.2*1.8m
