Description
Injection Unit
Screw Diameter: 40 mm
Screw L/D Ratio: 24 L/D
Shot Volume: 332.3 cm3
Actual Injection Volume: 302.4 g
Injection Pressure: 176 MPa
Clamping Unit
Clamp Tonnage: 1700 kN
Toggle Stroke: 430 mm
Space Between Tie-Bars: 470 × 470 mm
Max Mould Thickness: 500 mm
Min Mould Thickness: 150 mm
Ejector Stroke: 130 mm
Knockout Quantity: 5 pins
Ejector Tonnage: 46 kN
Other Parameters
Machine Weight: 4.5 T
Motor Power: 18.5 kW
Heater Power: 10.8 kW
Overall Dimension: 5.0 × 1.4 × 1.8 m (L×W×H)
Max. Pump Pressure: 14 MPa
Screw Diameter: 40 mm
Screw L/D Ratio: 24 L/D
Shot Volume: 332.3 cm3
Actual Injection Volume: 302.4 g
Injection Pressure: 176 MPa
Clamping Unit
Clamp Tonnage: 1700 kN
Toggle Stroke: 430 mm
Space Between Tie-Bars: 470 × 470 mm
Max Mould Thickness: 500 mm
Min Mould Thickness: 150 mm
Ejector Stroke: 130 mm
Knockout Quantity: 5 pins
Ejector Tonnage: 46 kN
Other Parameters
Machine Weight: 4.5 T
Motor Power: 18.5 kW
Heater Power: 10.8 kW
Overall Dimension: 5.0 × 1.4 × 1.8 m (L×W×H)
Max. Pump Pressure: 14 MPa
Related Products
Plastic injection molding machines
You may also like
Plastic and Rubber Machinery B2B platform
WINTEC (A Member of the ENGEL Group)
Advanced Servo Hydraulic Injection Molding Machine (FA Series)
INJECTION MOLDING MACHINE
High-Speed Thin-Wall Injection Molding Machine (SA-h Series)

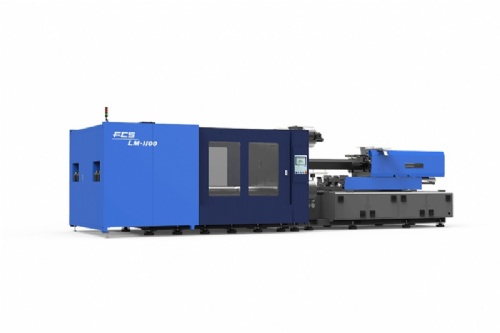

Two-Platen Injection Molding Machine (LM Series)
