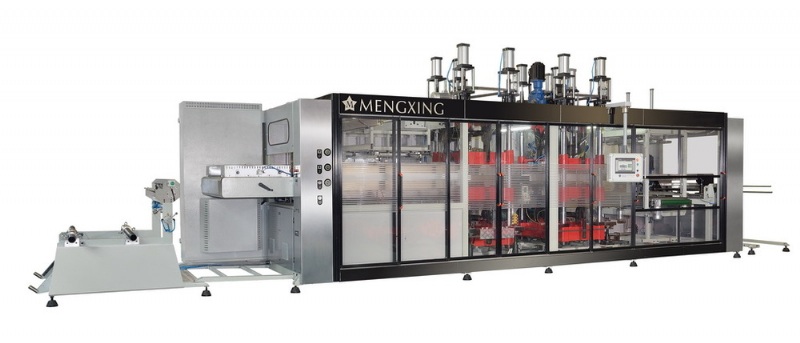

Servo Automatic 3 station Pressure & Vacuum Forming Machine

The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.

2. Pressure And/Or Vacuum forming.

3. Up and down mold forming method.

4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.

5. Upper & lower heater, three sections heating

6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won’t be effected by outer voltage.

7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.

8. Data memorization function can store 120 set of running data.

9. Products can be chose stacked upward or downward.

10. Feeding width can be synchronously or independently adjusted in electrical way.

11. Heater will automatically push-out when the sheet is over.

12. Auto roll sheet loading, reduce the working load.

---
